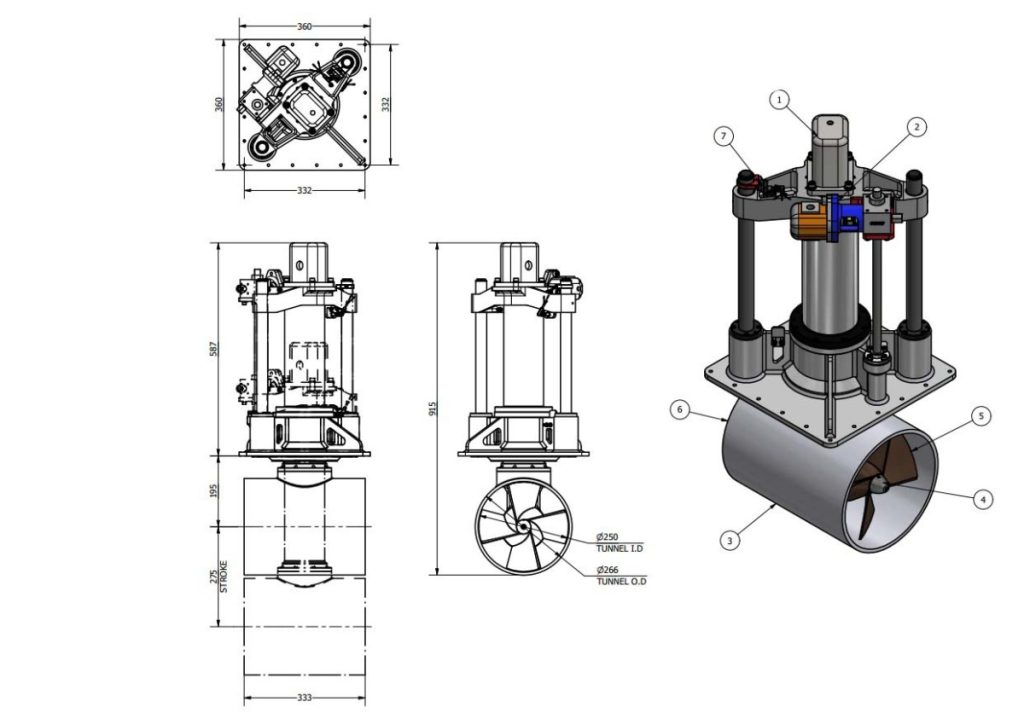

Hydraulic

H-0250-V

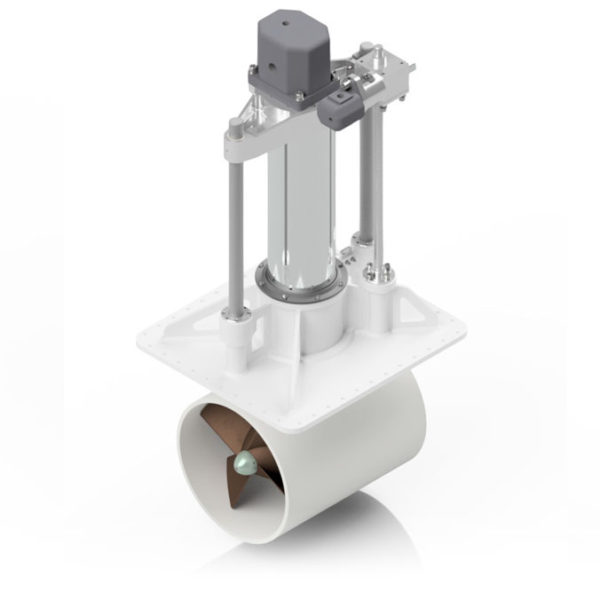

OMS Vertical Retracting Thruster Hydraulic

V Series vertical retracting thrusters benefit from the same in-hub technology as our T Series thrusters, whilst allowing the thruster to fully retract leaving a fair hull with minimal drag. This compact design uses a lead screw lift assembly with a reduction gearbox to ensure that the thruster hub when retracted is held firmly in place. The Vertical Thruster is also very useful where vessels have a deep V profile so the thruster is fitted higher providing a longer deployment stroke to clear the hull. They can also be fitted further forward or aft than a conventional Tunnel Thrusters increasing the turning moment of the hull and therefore requiring less power input. For added security, all V Series thrusters can be manually lifted in case of power failure. To ensure there is no environmental risk, the main drive motor, hydraulic hoses and electric cables are inside the vessel so are not open to seawater. OMS is the manufacturer of all OYS Thrusters.

SPECIFICATIONS
Max Power	25 kW (33 Hp)
Thrust	300 Kgf (661 Lbf)
Prop Diameter	255 mm (10 in)

DOWNLOADS
Vertical Thrusters H-0250-V

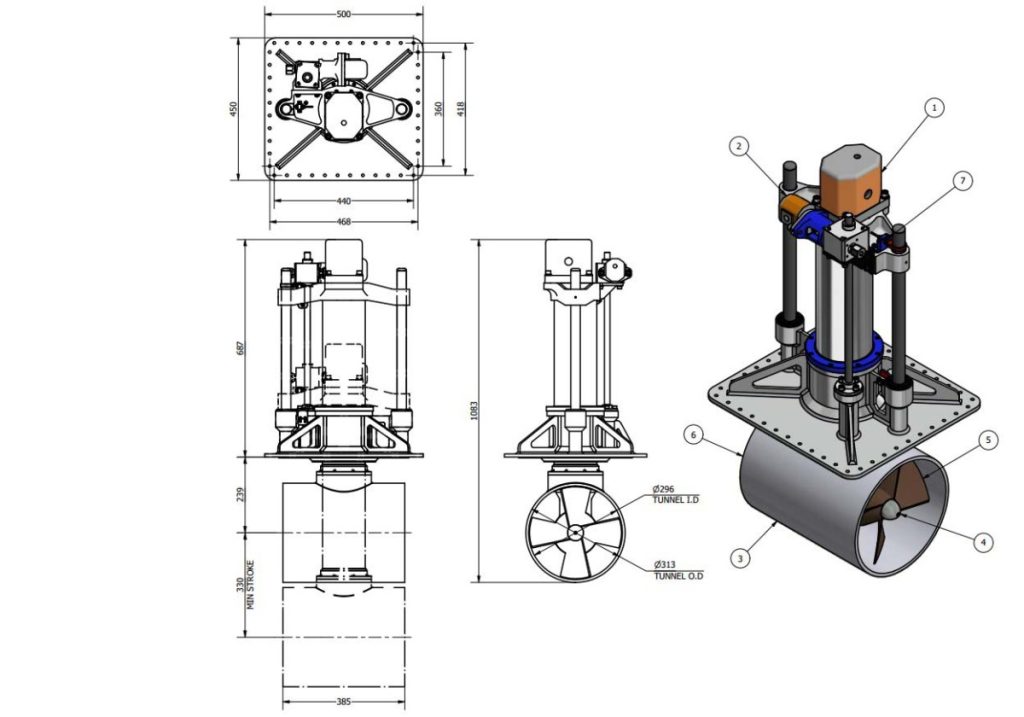

H-0300-V

SPECIFICATIONS
Max Power	36 kW (48 Hp)
Thrust	432 Kgf (952 Lbf)
Prop Diameter	305 mm (12 in)

DOWNLOADS
Vertical Thrusters H-0300-V

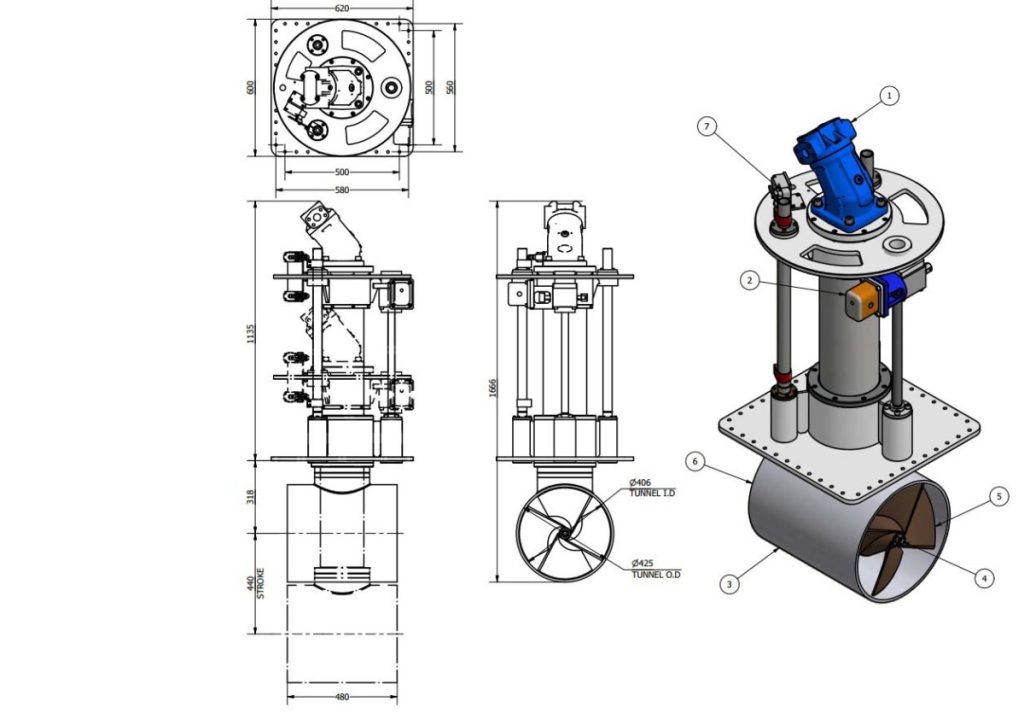

H-0400-V

OMS Vertical Retracting Thruster Hydraulic

V Series vertical retracting thrusters benefit from the same in-hub technology as our T Series thrusters, whilst allowing the thruster to fully retract leaving a fair hull with minimal drag. This compact design uses a lead screw lift assembly with a reduction gearbox to ensure that the thruster hub when retracted is held firmly in place. The Vertical Thruster is also very useful where vessels have a deep V profile so the thruster is fitted higher providing a longer deployment stroke to clear the hull. They can also be fitted further forward or aft than a conventional Tunnel Thrusters increasing the turning moment of the hull and therefore requiring less power input. For added security, all V Series thrusters can be manually lifted in case of power failure. To ensure there is no environmental risk, the main drive motor, hydraulic hoses and electric cables are inside the vessel so are not open to seawater. OMS is the manufacturer of all OYS Thrusters.

SPECIFICATIONS
Max Power	63 kW (85 Hp)
Thrust	756 Kgf (1667 Lbf)
Prop Diameter	406 mm (16 in)

DOWNLOADS
Vertical Thrusters H-0400-V

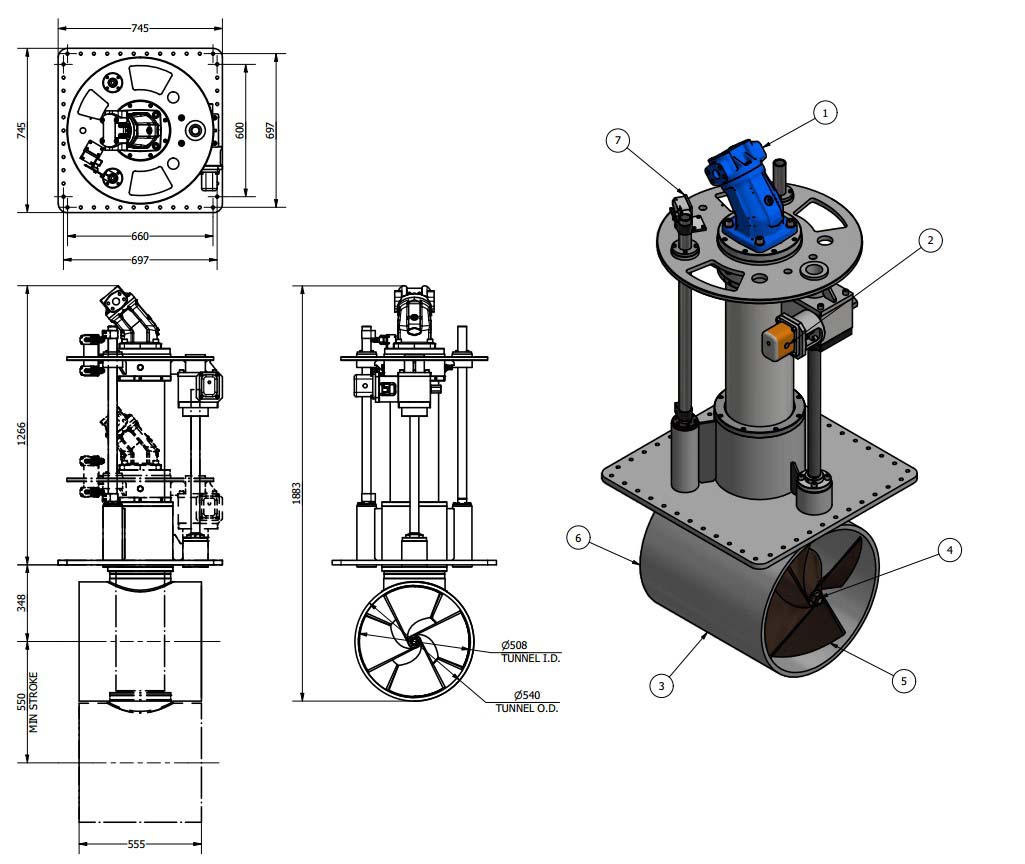

H-0500-V

OMS Vertical Retracting Thruster Hydraulic

V Series vertical retracting thrusters benefit from the same in-hub technology as our T Series thrusters, whilst allowing the thruster to fully retract leaving a fair hull with minimal drag. This compact design uses a lead screw lift assembly with a reduction gearbox to ensure that the thruster hub when retracted is held firmly in place. The Vertical Thruster is also very useful where vessels have a deep V profile so the thruster is fitted higher providing a longer deployment stroke to clear the hull. They can also be fitted further forward or aft than a conventional Tunnel Thrusters increasing the turning moment of the hull and therefore requiring less power input. For added security, all V Series thrusters can be manually lifted in case of power failure. To ensure there is no environmental risk, the main drive motor, hydraulic hoses and electric cables are inside the vessel so are not open to seawater. OMS is the manufacturer of all OYS Thrusters.

SPECIFICATIONS
Max Power	99 kW (133 Hp)
Thrust	1188 Kgf (2619 Lbf)
Prop Diameter	508 mm (20 in)

DOWNLOADS
Vertical Thrusters H-0500-V

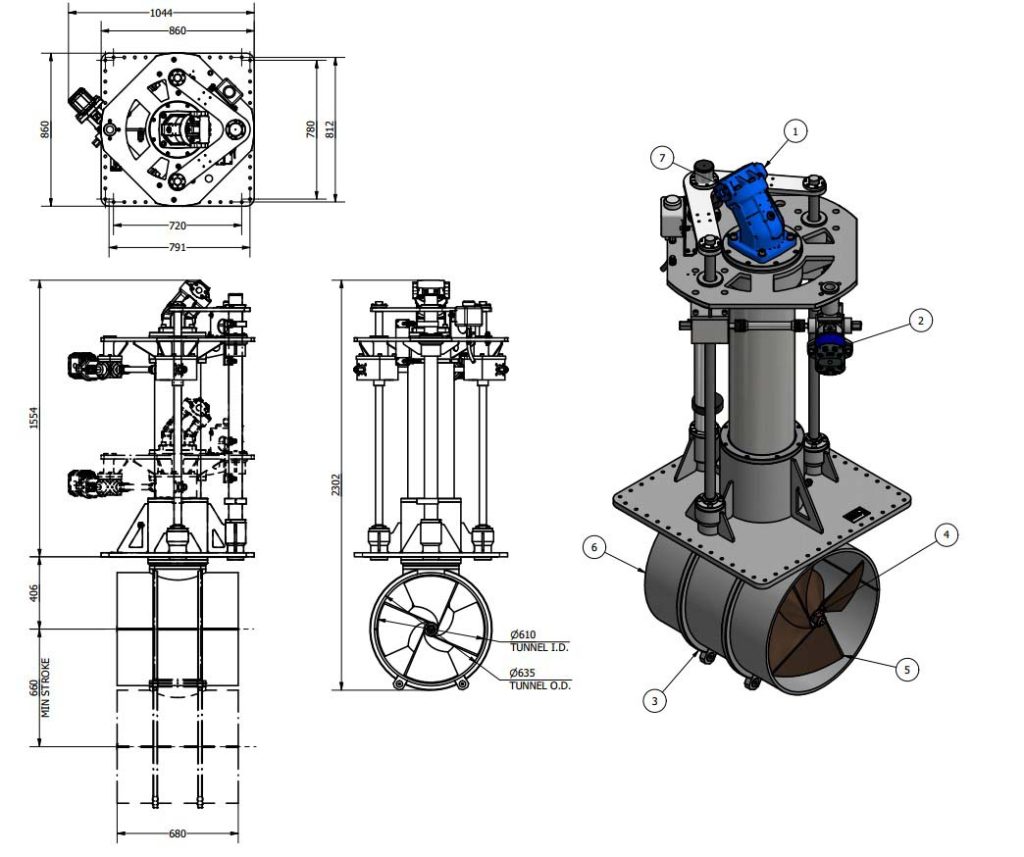

H-0600-V

OMS Vertical Retracting Thruster Hydraulic

V Series vertical retracting thrusters benefit from the same in-hub technology as our T Series thrusters, whilst allowing the thruster to fully retract leaving a fair hull with minimal drag. This compact design uses a lead screw lift assembly with a reduction gearbox to ensure that the thruster hub when retracted is held firmly in place. The Vertical Thruster is also very useful where vessels have a deep V profile so the thruster is fitted higher providing a longer deployment stroke to clear the hull. They can also be fitted further forward or aft than a conventional Tunnel Thrusters increasing the turning moment of the hull and therefore requiring less power input. For added security, all V Series thrusters can be manually lifted in case of power failure. To ensure there is no environmental risk, the main drive motor, hydraulic hoses and electric cables are inside the vessel so are not open to seawater. OMS is the manufacturer of all OYS Thrusters.

SPECIFICATIONS
Max Power	142 kW (191 Hp)
Thrust	1704 Kgf (3757 Lbf)
Prop Diameter	610 mm (24 in)

DOWNLOADS
Vertical Thrusters H-0600-V

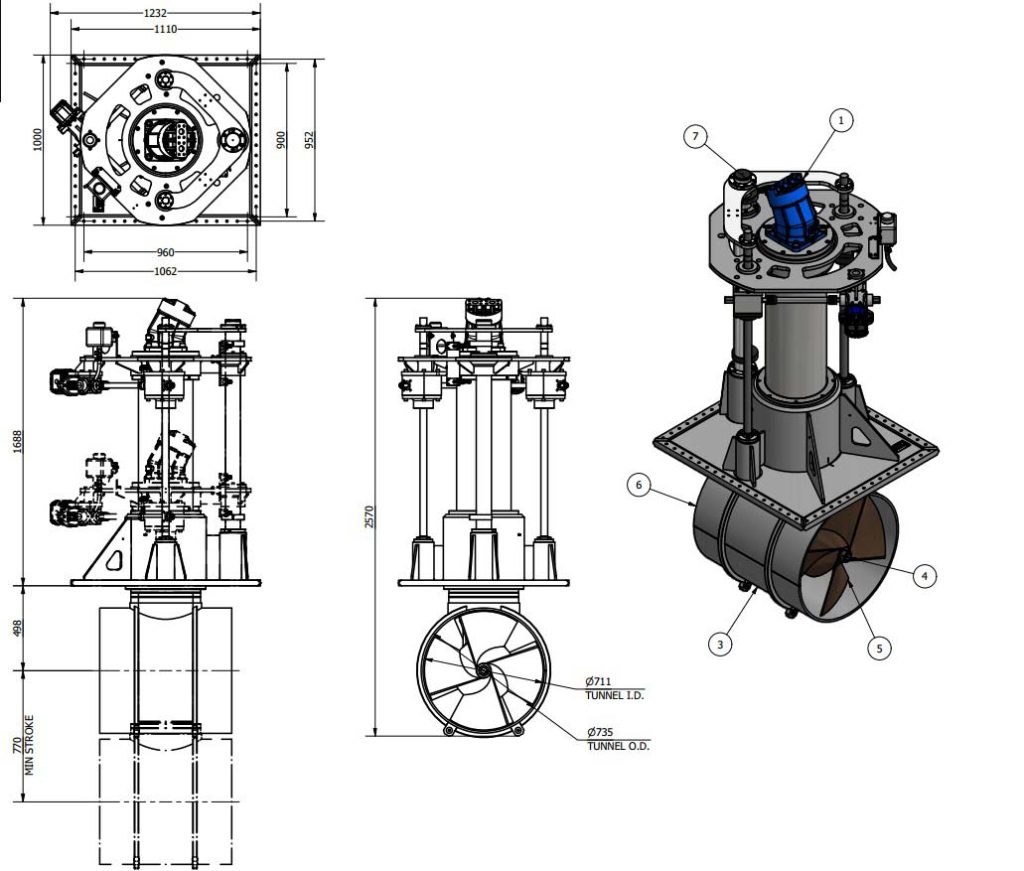

H-0700-V

OMS Vertical Retracting Thruster Hydraulic

V Series vertical retracting thrusters benefit from the same in-hub technology as our T Series thrusters, whilst allowing the thruster to fully retract leaving a fair hull with minimal drag. This compact design uses a lead screw lift assembly with a reduction gearbox to ensure that the thruster hub when retracted is held firmly in place. The Vertical Thruster is also very useful where vessels have a deep V profile so the thruster is fitted higher providing a longer deployment stroke to clear the hull. They can also be fitted further forward or aft than a conventional Tunnel Thrusters increasing the turning moment of the hull and therefore requiring less power input. For added security, all V Series thrusters can be manually lifted in case of power failure. To ensure there is no environmental risk, the main drive motor, hydraulic hoses and electric cables are inside the vessel so are not open to seawater. OMS is the manufacturer of all OYS Thrusters.

SPECIFICATIONS
Max Power	194 kW (260 Hp)
Thrust	2328 Kgf (5132 Lbf)
Prop Diameter	711 mm (28 in)

DOWNLOADS
Vertical Thrusters H-0700-V

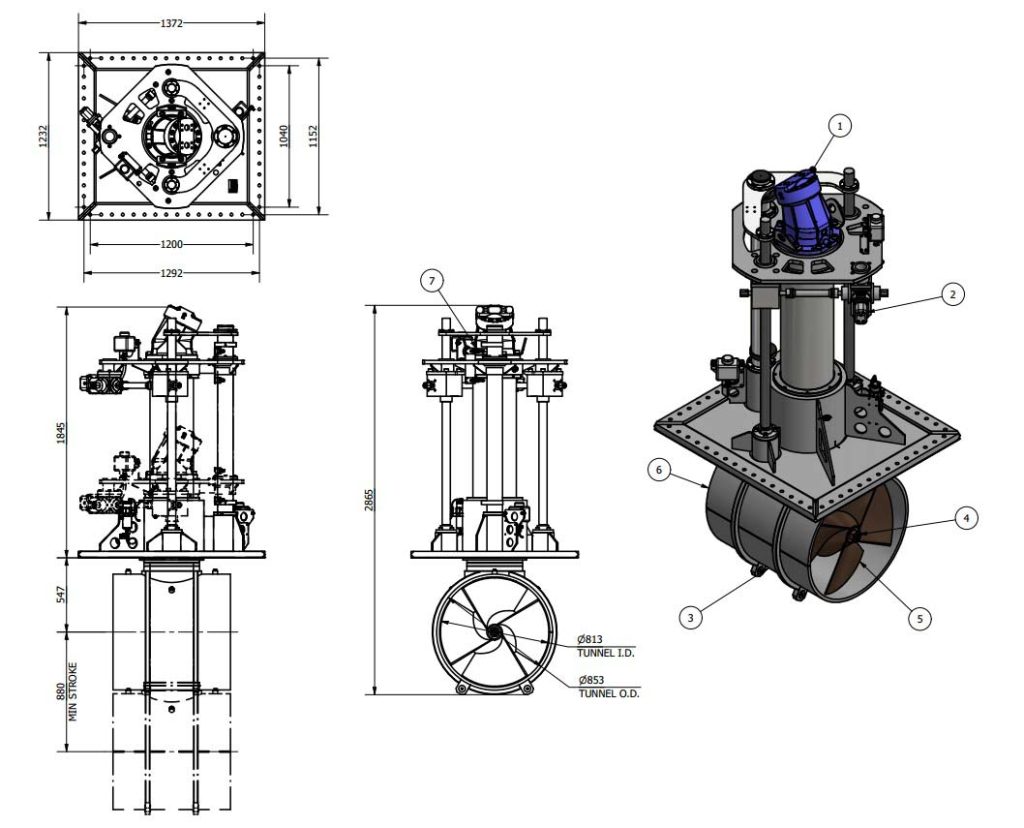

H-0800-V

OMS Vertical Retracting Thrusters Hydraulic

V Series vertical retracting thrusters benefit from the same in-hub technology as our T Series thrusters, whilst allowing the thruster to fully retract leaving a fair hull with minimal drag. This compact design uses a lead screw lift assembly with a reduction gearbox to ensure that the thruster hub when retracted is held firmly in place. The Vertical Thruster is also very useful where vessels have a deep V profile so the thruster is fitted higher providing a longer deployment stroke to clear the hull. They can also be fitted further forward or aft than a conventional Tunnel Thrusters increasing the turning moment of the hull and therefore requiring less power input. For added security, all V Series thrusters can be manually lifted in case of power failure. To ensure there is no environmental risk, the main drive motor, hydraulic hoses and electric cables are inside the vessel so are not open to seawater. OMS is the manufacturer of all OYS Thrusters.

SPECIFICATIONS
Max Power	252 kW (338 Hp)
Thrust	2772 Kgf (6111 Lbf)
Prop Diameter	813 mm (32 in)

DOWNLOADS
Vertical Thrusters H-0800-V

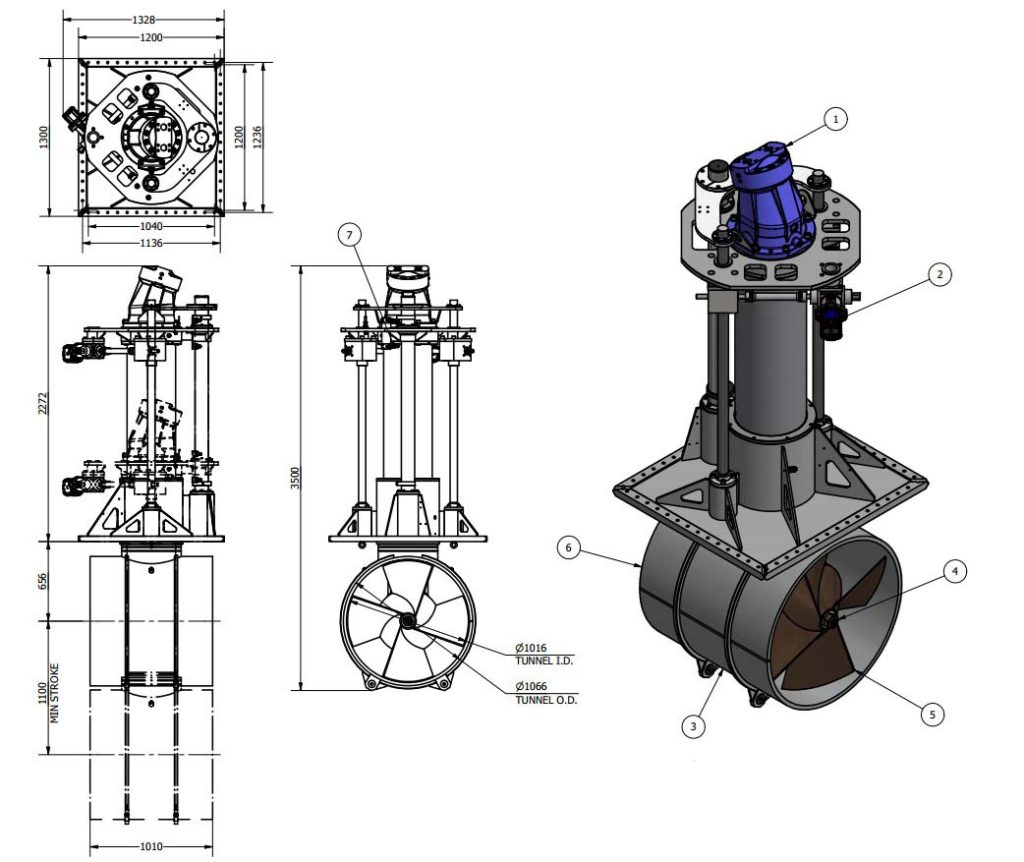

H-1000-V

OMS Vertical Retracting Thruster Hydraulic

V Series vertical retracting thrusters benefit from the same in-hub technology as our T Series thrusters, whilst allowing the thruster to fully retract leaving a fair hull with minimal drag. This compact design uses a lead screw lift assembly with a reduction gearbox to ensure that the thruster hub when retracted is held firmly in place. The Vertical Thruster is also very useful where vessels have a deep V profile so the thruster is fitted higher providing a longer deployment stroke to clear the hull. They can also be fitted further forward or aft than a conventional Tunnel Thrusters increasing the turning moment of the hull and therefore requiring less power input. For added security, all V Series thrusters can be manually lifted in case of power failure. To ensure there is no environmental risk, the main drive motor, hydraulic hoses and electric cables are inside the vessel so are not open to seawater. OMS is the manufacturer of all OYS Thrusters.

SPECIFICATIONS
Max Power	393 kW (527 Hp)
Thrust	4323 Kgf (9506 Lbf)
Prop Diameter	1016 mm (40 in)

DOWNLOADS
Vertical Thrusters H-1000-V

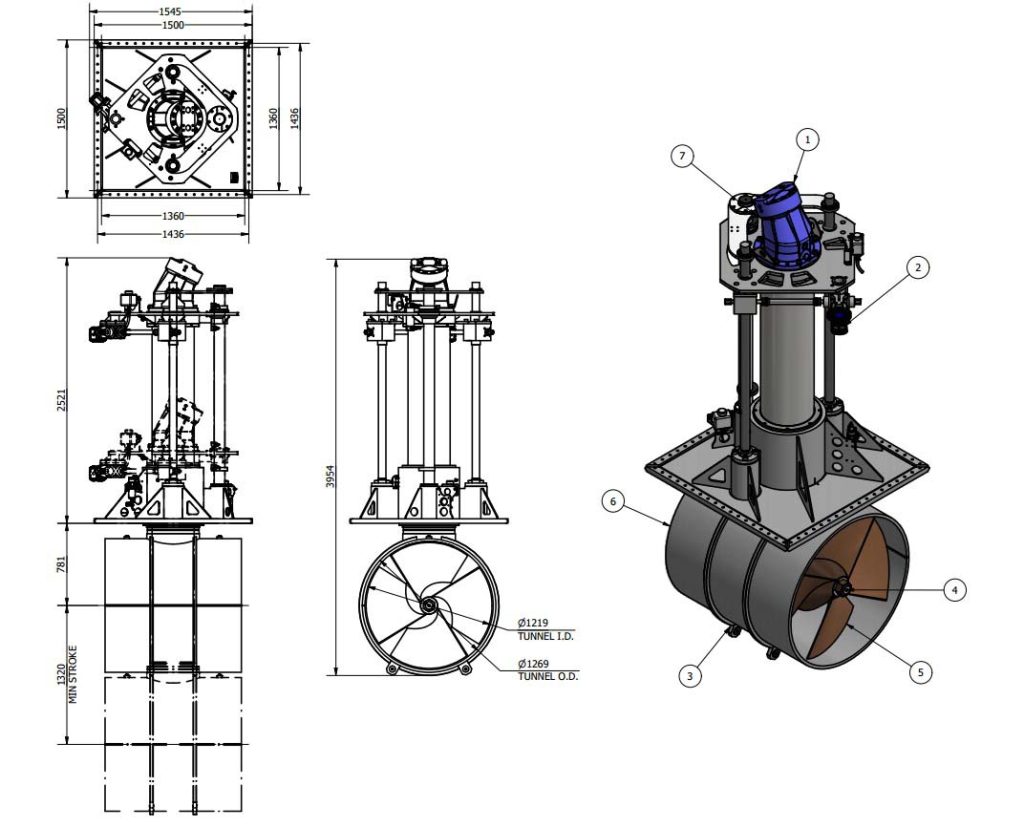

H-1200-V

OMS Vertical Retracting Thruster Hydraulic

V Series vertical retracting thrusters benefit from the same in-hub technology as our T Series thrusters, whilst allowing the thruster to fully retract leaving a fair hull with minimal drag. This compact design uses a lead screw lift assembly with a reduction gearbox to ensure that the thruster hub when retracted is held firmly in place. The Vertical Thruster is also very useful where vessels have a deep V profile so the thruster is fitted higher providing a longer deployment stroke to clear the hull. They can also be fitted further forward or aft than a conventional Tunnel Thrusters increasing the turning moment of the hull and therefore requiring less power input. For added security, all V Series thrusters can be manually lifted in case of power failure. To ensure there is no environmental risk, the main drive motor, hydraulic hoses and electric cables are inside the vessel so are not open to seawater. OMS is the manufacturer of all OYS Thrusters.

SPECIFICATIONS
Max Power	565 kW (758 Hp)
Thrust	6215 Kgf (13702 Lbf)
Prop Diameter	1219 mm (48 in)

DOWNLOADS
Vertical Thrusters H-1200-V
