Electric

E-0250-S

OMS Swing Thruster Electric

The OMS swing thruster benefits from the same in-hub technology as the fixed tunnel thruster, whilst allowing the thruster to fully retract leaving a fair hull with minimal drag. These types of thrusters are usually used in applications where they are positioned within the accommodation area of a vessel. The low profile and compact design allows them to be easily fitted below floor bearers or in low level lockers, under beds or among other locations. This compact design uses a lead screw lift assembly with a reduction gear box to ensure that the thruster hub, when retracted is held firmly in place and cannot move. In addition, OMS swing thrusters feature a locking pin which adds additional security when locking the leg in the raised position. The main drive motor and hydraulic hoses or cables are fully enclosed within the upper leg assembly so are not open to sea water. OMS has worked with a number of boat builders to optimise the range offered.

SPECIFICATIONS
Max Power	25 kW (33 Hp)
Thrust	300 Kgf (661 Lbf)
Prop Diameter	255 mm (10 in)

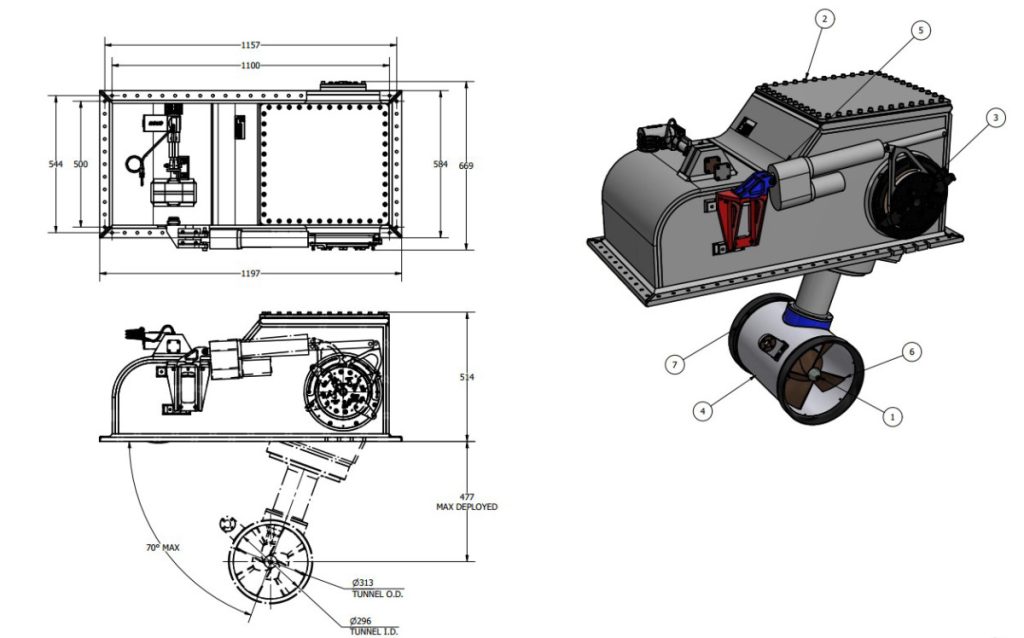

E-0300-S

SPECIFICATIONS
Max Power	36 kW (48 Hp)
Thrust	432 Kgf (952 Lbf)
Prop Diameter	305 mm (12 in)

DOWNLOADS
Swing Thruster E-0300-S

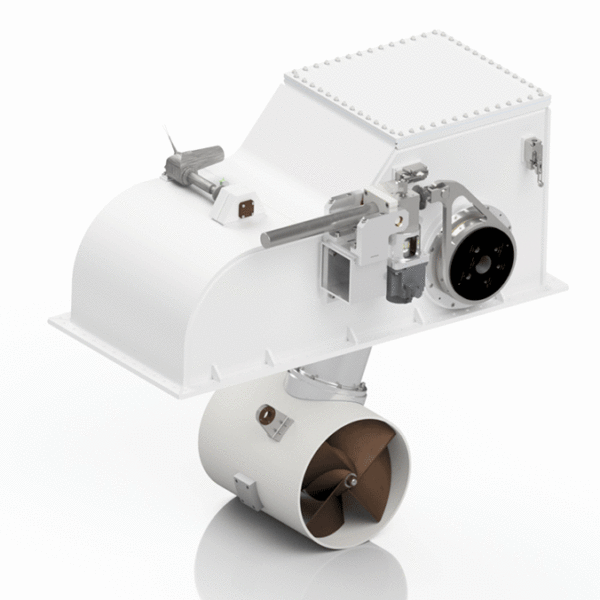

E-0400-S

OMS Swing Thruster Electric

The OMS swing thruster benefits from the same in-hub technology as the fixed tunnel thruster, whilst allowing the thruster to fully retract leaving a fair hull with minimal drag. These types of thrusters are usually used in applications where they are positioned within the accommodation area of a vessel. The low profile and compact design allows them to be easily fitted below floor bearers or in low level lockers, under beds or among other locations. This compact design uses a lead screw lift assembly with a reduction gear box to ensure that the thruster hub, when retracted is held firmly in place and cannot move. In addition, OMS swing thrusters feature a locking pin which adds additional security when locking the leg in the raised position. The main drive motor and hydraulic hoses or cables are fully enclosed within the upper leg assembly so are not open to sea water. OMS has worked with a number of boat builders to optimise the range offered.

SPECIFICATIONS
Max Power	63 kW (85 Hp)
Thrust	756 Kgf (1667 Lbf)
Prop Diameter	406 mm (16 in)

DOWNLOADS
Swing Thruster E-0400-S

E-0500-S

OMS Swing Thruster Electric

The OMS swing thruster benefits from the same in-hub technology as the fixed tunnel thruster, whilst allowing the thruster to fully retract leaving a fair hull with minimal drag. These types of thrusters are usually used in applications where they are positioned within the accommodation area of a vessel. The low profile and compact design allows them to be easily fitted below floor bearers or in low level lockers, under beds or among other locations. This compact design uses a lead screw lift assembly with a reduction gear box to ensure that the thruster hub, when retracted is held firmly in place and cannot move. In addition, OMS swing thrusters feature a locking pin which adds additional security when locking the leg in the raised position. The main drive motor and hydraulic hoses or cables are fully enclosed within the upper leg assembly so are not open to sea water. OMS has worked with a number of boat builders to optimise the range offered.

SPECIFICATIONS
Max Power	99 kW (133 Hp)
Thrust	1188 Kgf (2619 Lbf)
Prop Diameter	508 mm (20 in)

DOWNLOADS
E-0500-S Downloads

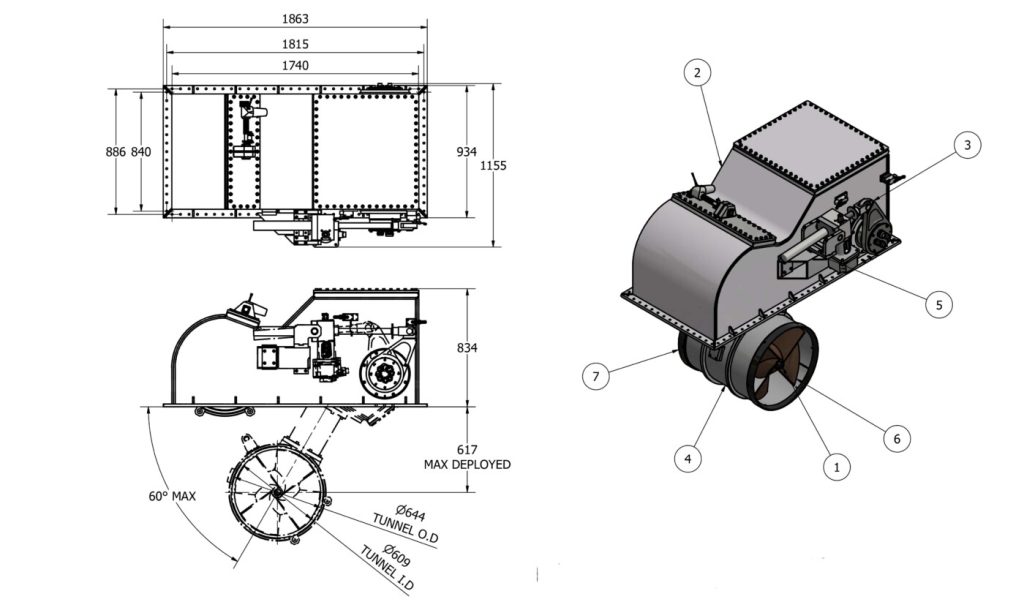

E-0600-S

OMS Swing Thruster Electric

The OMS swing thruster benefits from the same in-hub technology as the fixed tunnel thruster, whilst allowing the thruster to fully retract leaving a fair hull with minimal drag. These types of thrusters are usually used in applications where they are positioned within the accommodation area of a vessel. The low profile and compact design allows them to be easily fitted below floor bearers or in low level lockers, under beds or among other locations. This compact design uses a lead screw lift assembly with a reduction gear box to ensure that the thruster hub, when retracted is held firmly in place and cannot move. In addition, OMS swing thrusters feature a locking pin which adds additional security when locking the leg in the raised position. The main drive motor and hydraulic hoses or cables are fully enclosed within the upper leg assembly so are not open to sea water. OMS has worked with a number of boat builders to optimise the range offered.

SPECIFICATIONS
Max Power	142 kW (191 Hp)
Thrust	1704 Kgf (3757 Lbf)
Prop Diameter	610 mm (24 in)

DOWNLOADS
thrusters-download 2764

E-0700-S

OMS Swing Thruster Electric

SPECIFICATIONS
Max Power	194 kW (260 Hp)
Thrust	2328 Kgf (5132 Lbf)
Prop Diameter	711 mm (28 in)

E-0800-S

OMS Swing Thruster Electric

The OMS swing thruster benefits from the same in-hub technology as the fixed tunnel thruster, whilst allowing the thruster to fully retract leaving a fair hull with minimal drag. These types of thrusters are usually used in applications where they are positioned within the accommodation area of a vessel. The low profile and compact design allows them to be easily fitted below floor bearers or in low level lockers, under beds or among other locations. This compact design uses a lead screw lift assembly with a reduction gear box to ensure that the thruster hub, when retracted is held firmly in place and cannot move. In addition, OMS swing thrusters feature a locking pin which adds additional security when locking the leg in the raised position. The main drive motor and hydraulic hoses or cables are fully enclosed within the upper leg assembly so are not open to sea water. OMS has worked with a number of boat builders to optimise the range offered.

SPECIFICATIONS
Max Power	252 kW (338 Hp)
Thrust	2772 Kgf (6111 Lbf)
Prop Diameter	813 mm (32 in)

DOWNLOADS
Thrusters Download

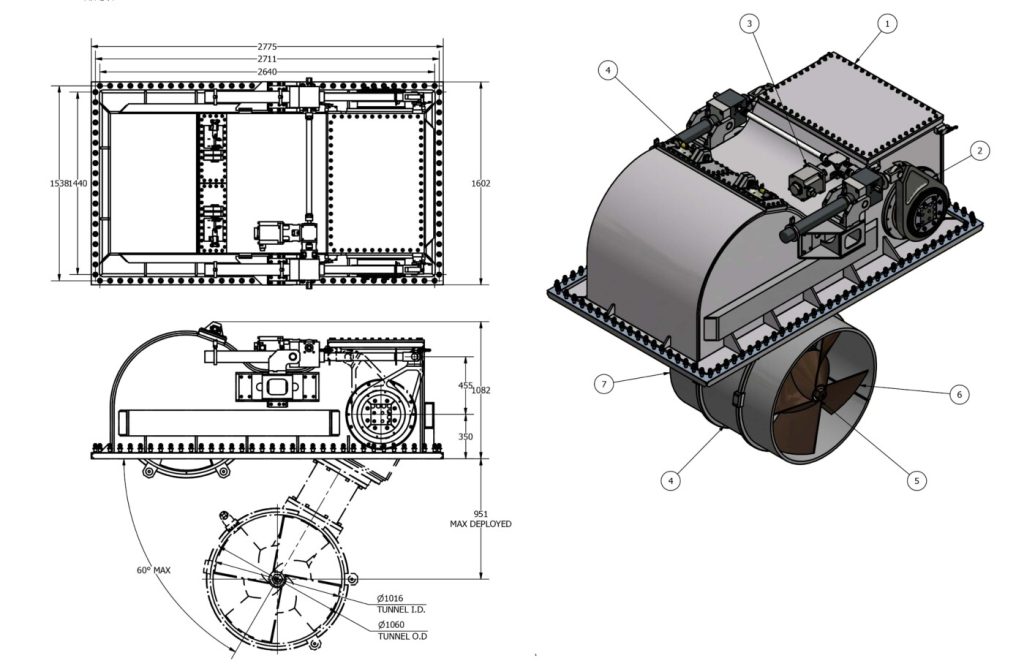

E-1000-S

OMS Swing Thruster Electric

The OMS swing thruster benefits from the same in-hub technology as the fixed tunnel thruster, whilst allowing the thruster to fully retract leaving a fair hull with minimal drag. These types of thrusters are usually used in applications where they are positioned within the accommodation area of a vessel. The low profile and compact design allows them to be easily fitted below floor bearers or in low level lockers, under beds or among other locations. This compact design uses a lead screw lift assembly with a reduction gear box to ensure that the thruster hub, when retracted is held firmly in place and cannot move. In addition, OMS swing thrusters feature a locking pin which adds additional security when locking the leg in the raised position. The main drive motor and hydraulic hoses or cables are fully enclosed within the upper leg assembly so are not open to sea water. OMS has worked with a number of boat builders to optimise the range offered.

SPECIFICATIONS
Max Power	393 kW (527 Hp)
Thrust	4323 Kgf (9506 Lbf)
Prop Diameter	1016 mm (40 in)

DOWNLOADS
SWING THRUSTER DOWNLOAD

E-1200-S

OMS Swing Thruster Electric

The OMS swing thruster benefits from the same in-hub technology as the fixed tunnel thruster, whilst allowing the thruster to fully retract leaving a fair hull with minimal drag. These types of thrusters are usually used in applications where they are positioned within the accommodation area of a vessel. The low profile and compact design allows them to be easily fitted below floor bearers or in low level lockers, under beds or among other locations. This compact design uses a lead screw lift assembly with a reduction gear box to ensure that the thruster hub, when retracted is held firmly in place and cannot move. In addition, OMS swing thrusters feature a locking pin which adds additional security when locking the leg in the raised position. The main drive motor and hydraulic hoses or cables are fully enclosed within the upper leg assembly so are not open to sea water. OMS has worked with a number of boat builders to optimise the range offered.

SPECIFICATIONS
Max Power	565 kW (758 Hp)
Thrust	6215 Kgf (13702 Lbf)
Prop Diameter	1219 mm (48 in)
