Electric

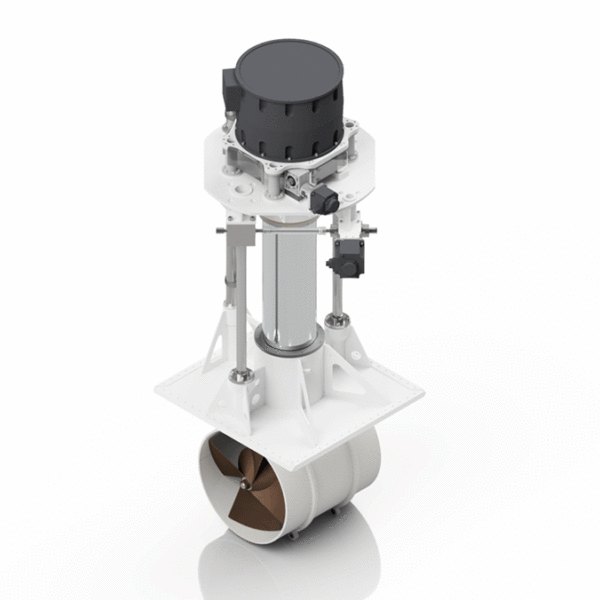

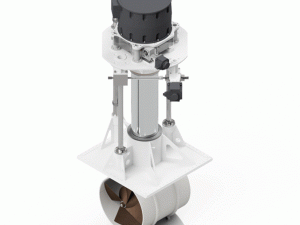

VR Series vertical retracting thrusters benefit from the same in-hub technology as our T Series thrusters, whilst allowing the thruster to fully retract leaving a fair hull with minimal drag. This compact design uses a lead screw lift assembly with a reduction gearbox to ensure that the thruster hub when retracted is held firmly in place. The VR Series thruster deploys vertically and can rotate 360 degrees whilst thrusting. Having steerable thrust provides ultimate manoeuvrability for berthing or in conjunction with any dynamic positioning system. OMS is the manufacturer of all OYS Thrusters.

DATA TABLE

PART NUMBERMAX POWER (KW)MAX POWER (HP)THRUST (KGF)THRUST (LBS)PROP DIAMETER (MM)PROP DIAMETER (IN)
E-0250-VR253330066125510

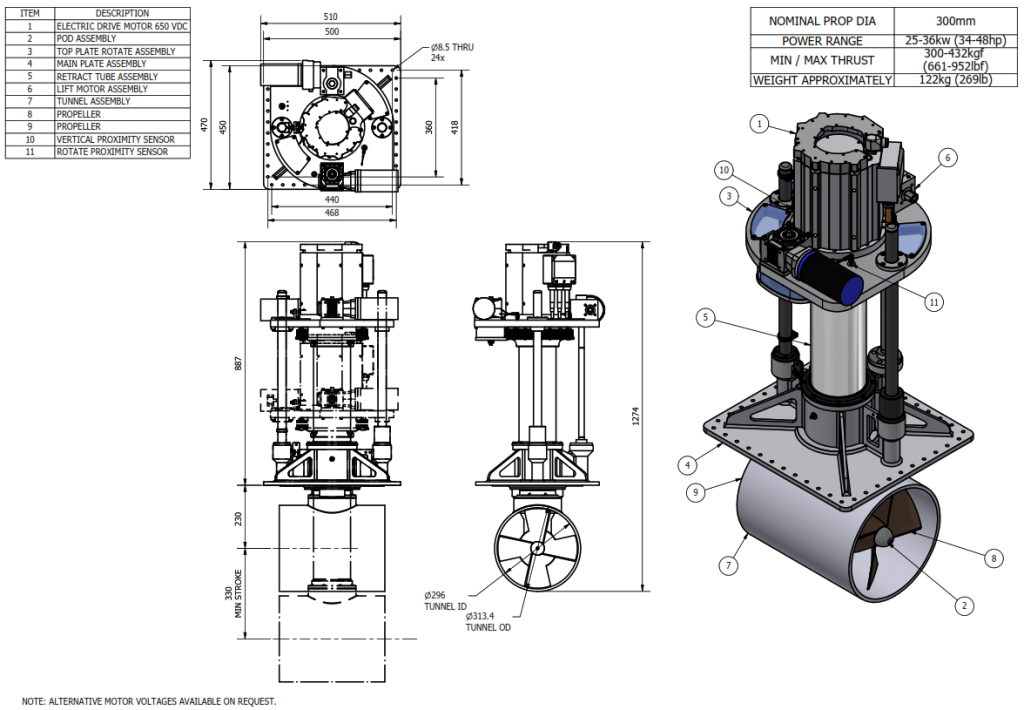

E-0300-VR364843295230512
E-0400-VR6385756166740616

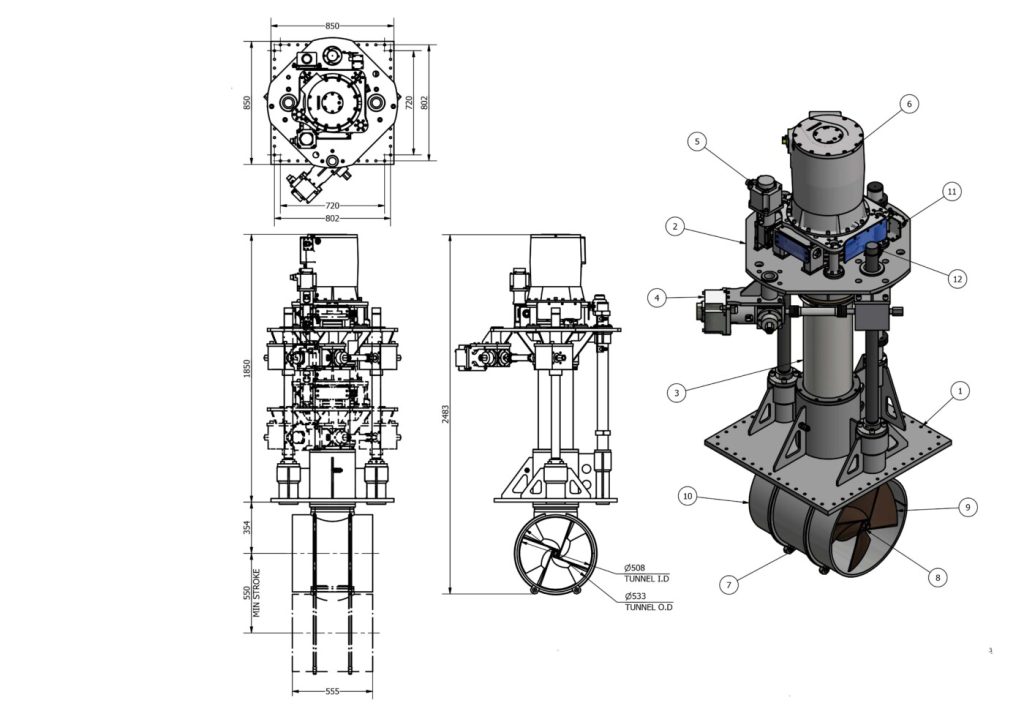

E-0500-VR991331188261950820

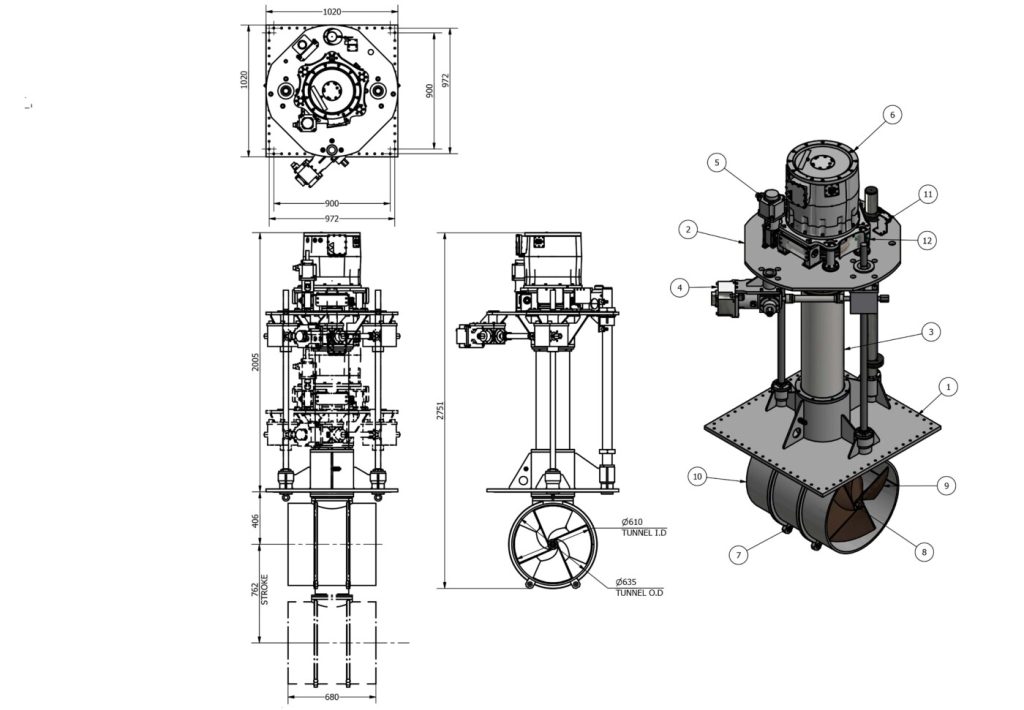

E-0600-VR1421911704375761024

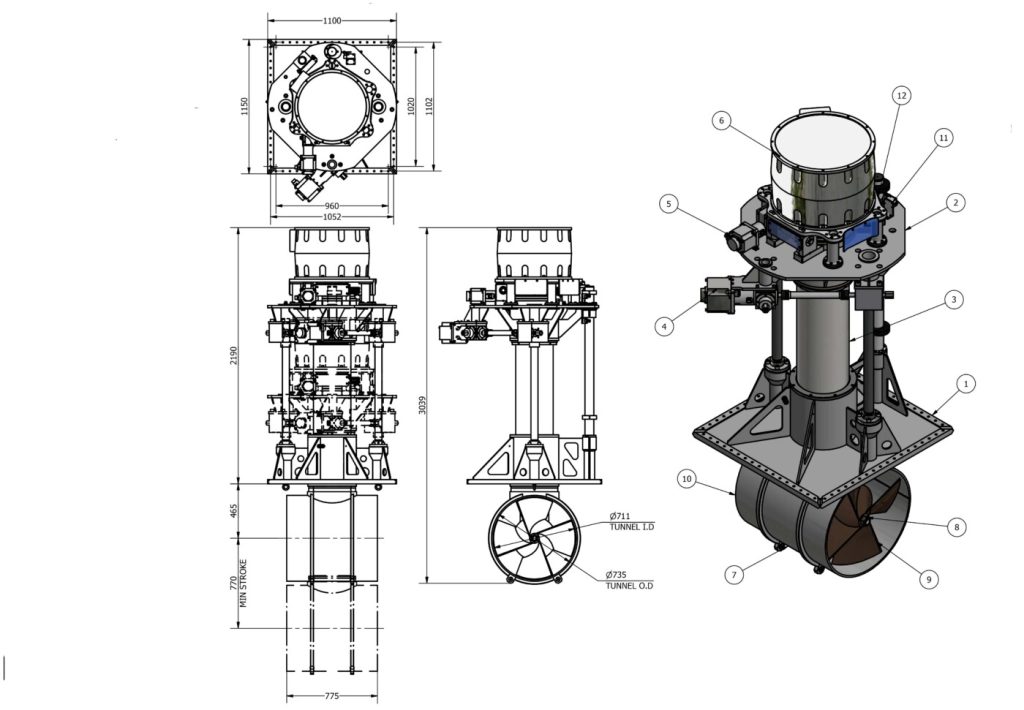

E-0700-VR1942602328513271128

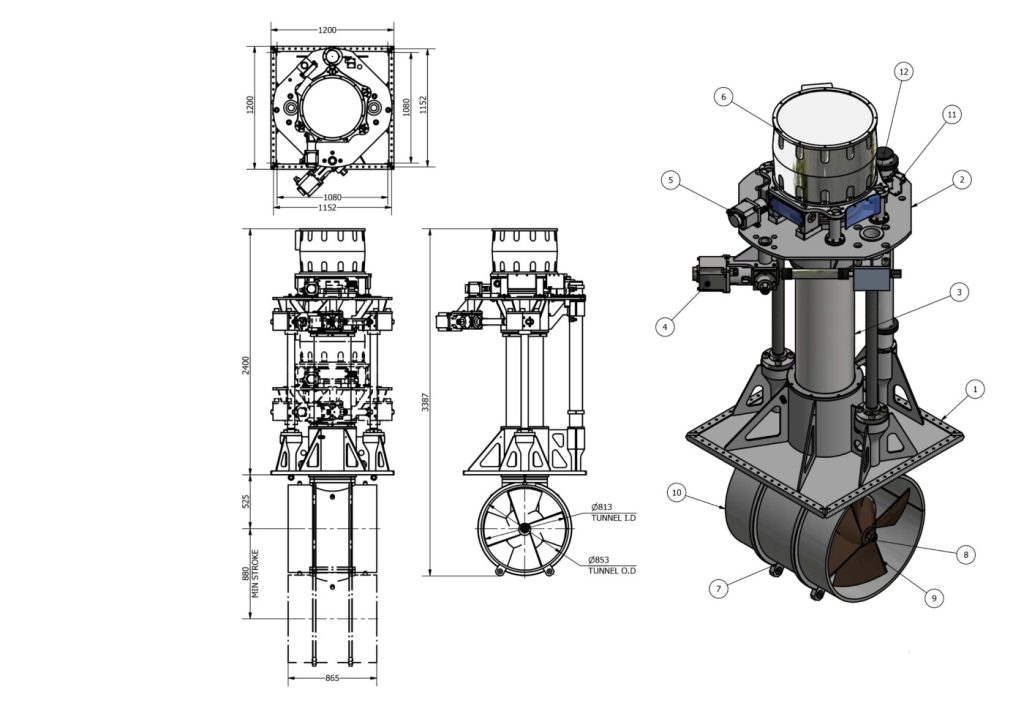

E-0800-VR2523382772611181332

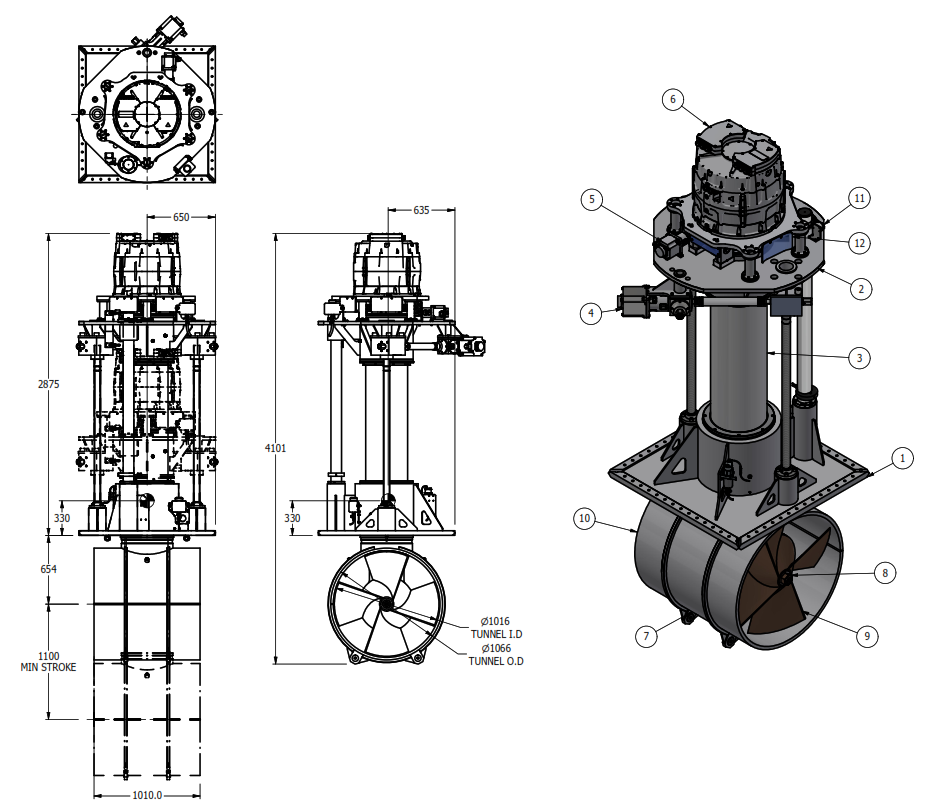

E-1000-VR39352743239506101640

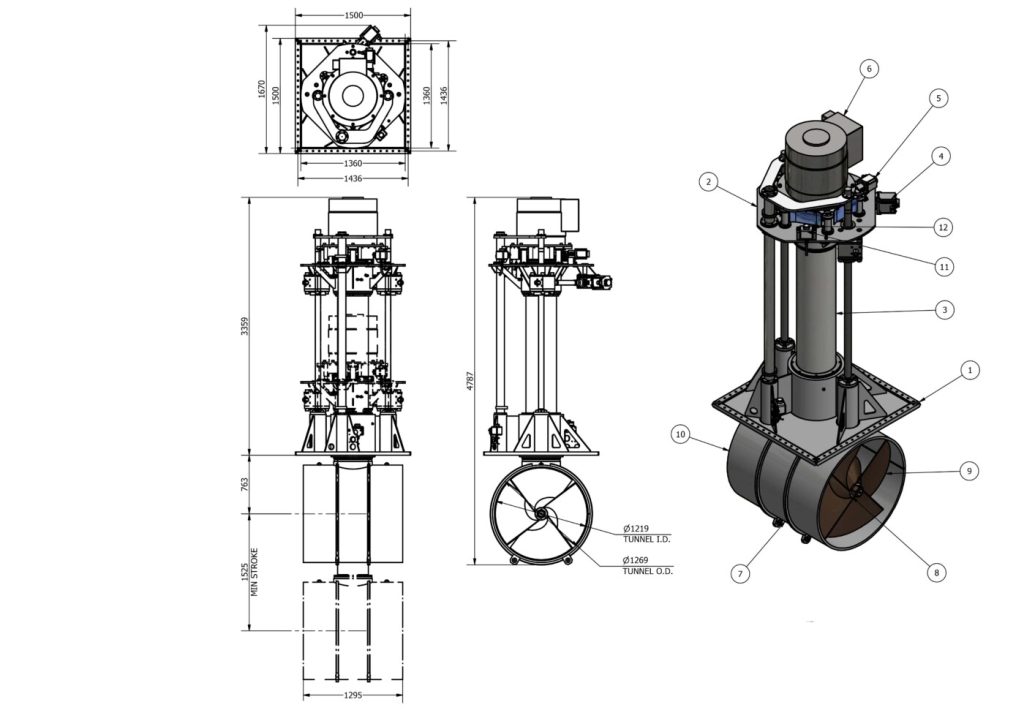

E-1200-VR565758621513702121948
