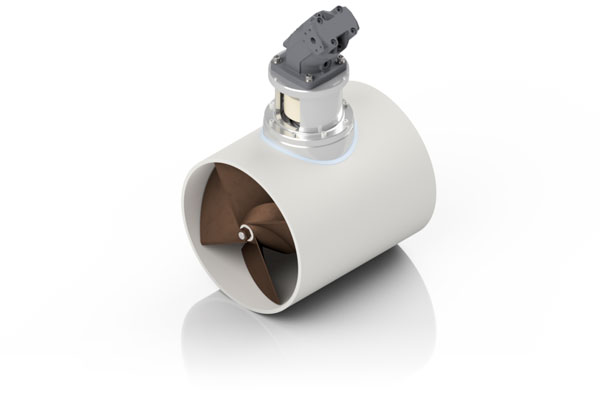

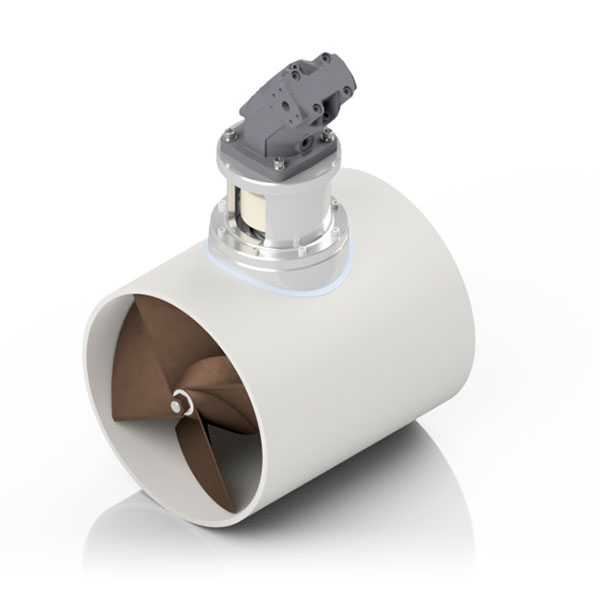

Hydraulic Tunnel Thrusters

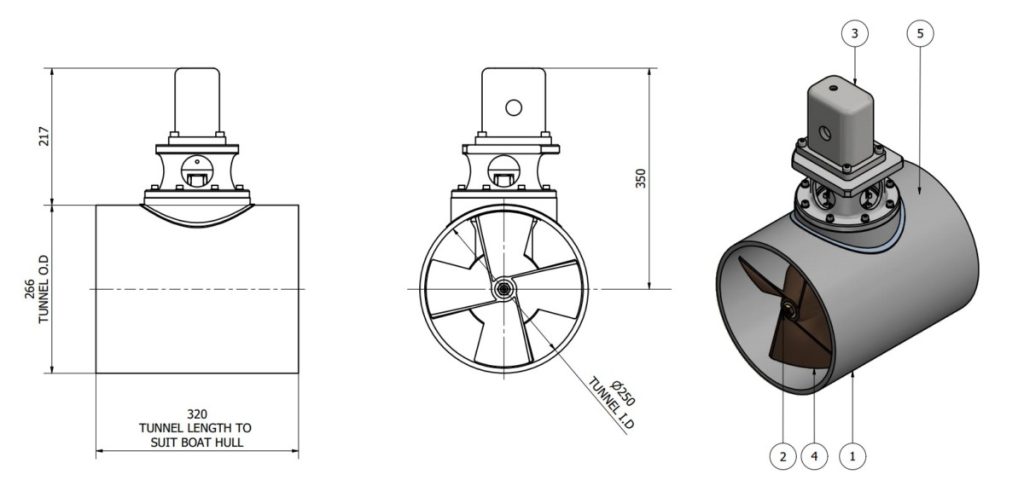

H-0250-T

OMS Tunnel Thruster Hydraulic

T Series tunnel thrusters are compact and easy to fit units that can be supplied complete with steel, aluminium or composite tunnels, pre-drilled ready for installation. The thruster hub units are protected by twin shaft seals on each propeller shaft and a single shaft seal on the vertical input shaft. The tunnel thruster uses high torque spiral bevel gears and twin contra-rotating propellers to develop a high thrust to tunnel diameter ratio. T Series thrusters are supplied complete with a mounting saddle, all gaskets/fasteners and a suitable interface for any hydraulic or electric motor. The motor is driven via a flexible coupling to reduce noise and vibration. OMS is the manufacturer of all OYS Thrusters.

SPECIFICATIONS
Max Power	25 kW (33 Hp)
Thrust	300 Kgf (661 Lbf)
Prop Diameter	255 mm (10 in)

DOWNLOADS
Tunnel Thrusters H-0250-T

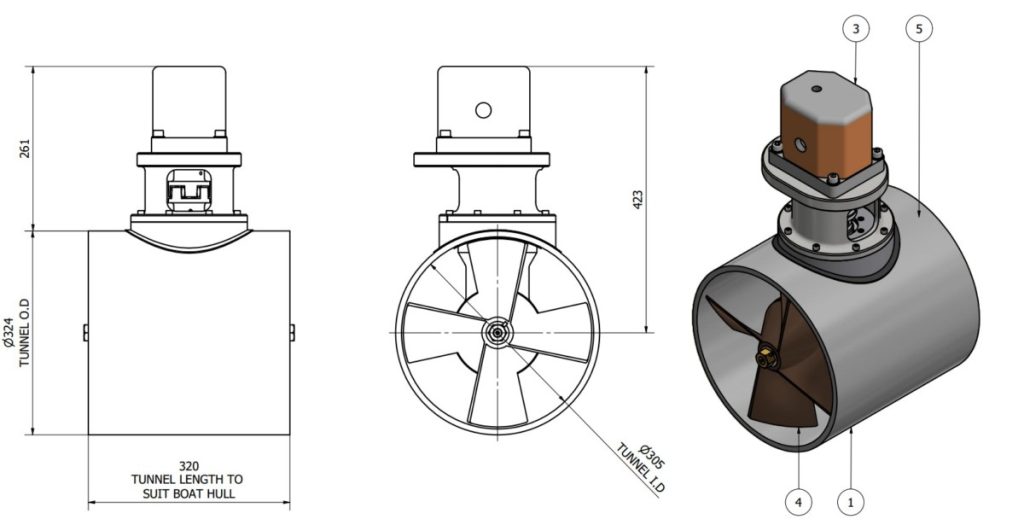

H-0300-T

OMS Tunnel Thruster Hydraulic

T Series tunnel thrusters are compact and easy to fit units that can be supplied complete with steel, aluminium or composite tunnels, pre-drilled ready for installation. The thruster hub units are protected by twin shaft seals on each propeller shaft and a single shaft seal on the vertical input shaft. The tunnel thruster uses high torque spiral bevel gears and twin contra-rotating propellers to develop a high thrust to tunnel diameter ratio. T Series thrusters are supplied complete with a mounting saddle, all gaskets/fasteners and a suitable interface for any hydraulic or electric motor. The motor is driven via a flexible coupling to reduce noise and vibration. OMS is the manufacturer of all OYS Thrusters.

SPECIFICATIONS
Max Power	36 kW (48 Hp)
Thrust	432 Kgf (952 Lbf)
Prop Diameter	305 mm (12 in)

DOWNLOADS
Tunnel Thrusters H-0300-T

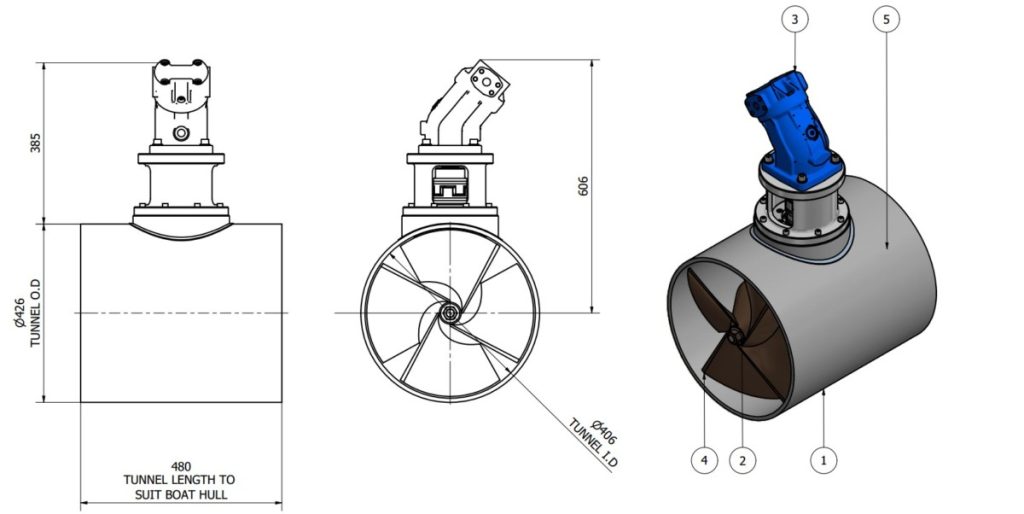

H-0400-T

OMS Tunnel Thruster Hydraulic

T Series tunnel thrusters are compact and easy to fit units that can be supplied complete with steel, aluminium or composite tunnels, pre-drilled ready for installation. The thruster hub units are protected by twin shaft seals on each propeller shaft and a single shaft seal on the vertical input shaft. The tunnel thruster uses high torque spiral bevel gears and twin contra-rotating propellers to develop a high thrust to tunnel diameter ratio. T Series thrusters are supplied complete with a mounting saddle, all gaskets/fasteners and a suitable interface for any hydraulic or electric motor. The motor is driven via a flexible coupling to reduce noise and vibration. OMS is the manufacturer of all OYS Thrusters.

SPECIFICATIONS
Max Power	63 kW (85 Hp)
Thrust	756 Kgf (1667 Lbf)
Prop Diameter	406 mm (16 in)

DOWNLOADS
Tunnel Thrusters H-0400-T

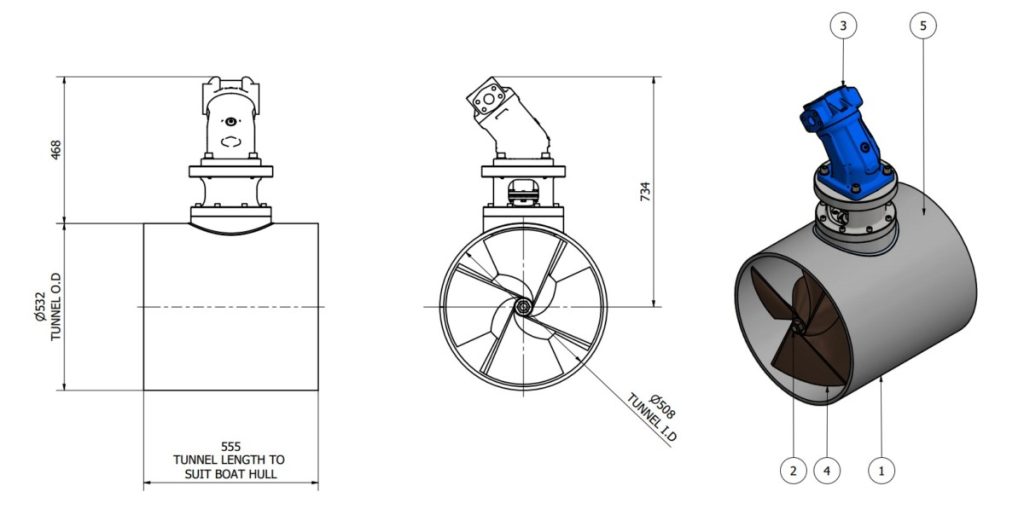

H-0500-T

OMS Tunnel Thruster Hydraulic

T Series tunnel thrusters are compact and easy to fit units that can be supplied complete with steel, aluminium or composite tunnels, pre-drilled ready for installation. The thruster hub units are protected by twin shaft seals on each propeller shaft and a single shaft seal on the vertical input shaft. The tunnel thruster uses high torque spiral bevel gears and twin contra-rotating propellers to develop a high thrust to tunnel diameter ratio. T Series thrusters are supplied complete with a mounting saddle, all gaskets/fasteners and a suitable interface for any hydraulic or electric motor. The motor is driven via a flexible coupling to reduce noise and vibration. OMS is the manufacturer of all OYS Thrusters.

SPECIFICATIONS
Max Power	99 KW (133 Hp)
Thrust	1188 Kgf (2619 Lbf)
Prop	508 mm (20 in)

DOWNLOADS
Tunnel Thrusters H-0500-T

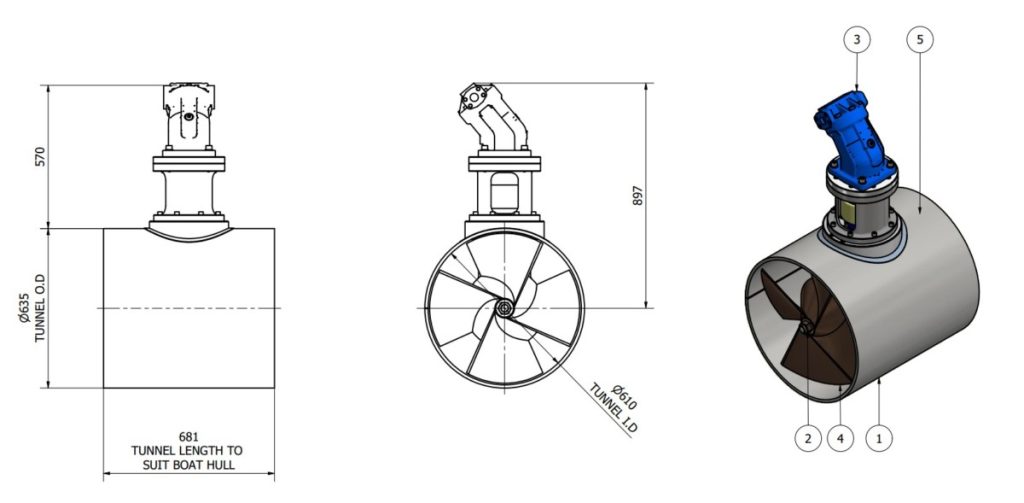

H-0600-T

OMS Tunnel Thruster Hydraulic

T Series tunnel thrusters are compact and easy to fit units that can be supplied complete with steel, aluminium or composite tunnels, pre-drilled ready for installation. The thruster hub units are protected by twin shaft seals on each propeller shaft and a single shaft seal on the vertical input shaft. The tunnel thruster uses high torque spiral bevel gears and twin contra-rotating propellers to develop a high thrust to tunnel diameter ratio. T Series thrusters are supplied complete with a mounting saddle, all gaskets/fasteners and a suitable interface for any hydraulic or electric motor. The motor is driven via a flexible coupling to reduce noise and vibration. OMS is the manufacturer of all OYS Thrusters.

SPECIFICATIONS
Max Power	142 kW (191 Hp)
Thrust	1704 Kgf (3757 Lbf)
Prop Diameter	610 mm (24 in)

DOWNLOADS
Tunnel Thrusters H-0600-T

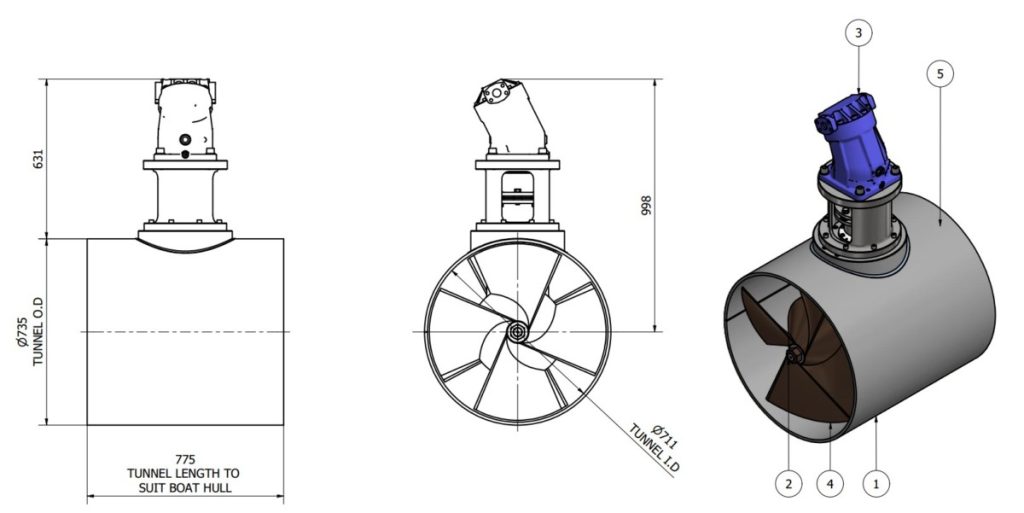

H-0700-T

OMS Tunnel Thruster Hydraulic

T Series tunnel thrusters are compact and easy to fit units that can be supplied complete with steel, aluminium or composite tunnels, pre-drilled ready for installation. The thruster hub units are protected by twin shaft seals on each propeller shaft and a single shaft seal on the vertical input shaft. The tunnel thruster uses high torque spiral bevel gears and twin contra-rotating propellers to develop a high thrust to tunnel diameter ratio. T Series thrusters are supplied complete with a mounting saddle, all gaskets/fasteners and a suitable interface for any hydraulic or electric motor. The motor is driven via a flexible coupling to reduce noise and vibration. OMS is the manufacturer of all OYS Thrusters.

SPECIFICATIONS
Max Power	194 kW (260 Hp)
Thrust	2328 Kgf (5132 Lbf)
Prop Diameter	711 mm (28 in)

DOWNLOADS
Tunnel Thrusters H-0700-T

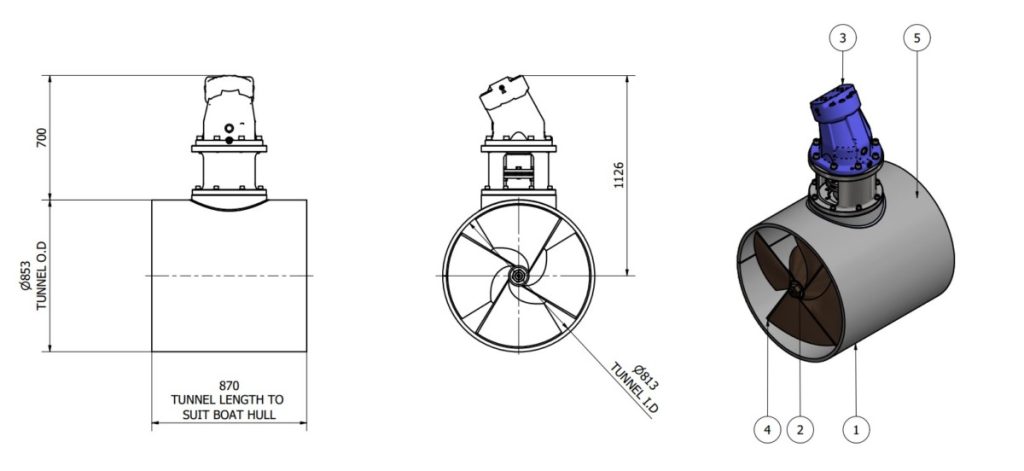

H-0800-T

OMS Tunnel Thruster Hydraulic

T Series tunnel thrusters are compact and easy to fit units that can be supplied complete with steel, aluminium or composite tunnels, pre-drilled ready for installation. The thruster hub units are protected by twin shaft seals on each propeller shaft and a single shaft seal on the vertical input shaft. The tunnel thruster uses high torque spiral bevel gears and twin contra-rotating propellers to develop a high thrust to tunnel diameter ratio. T Series thrusters are supplied complete with a mounting saddle, all gaskets/fasteners and a suitable interface for any hydraulic or electric motor. The motor is driven via a flexible coupling to reduce noise and vibration. OMS is the manufacturer of all OYS Thrusters.

SPECIFICATIONS
Max Power	252 kW (338 Hp)
Thrust	2772 Kgf (6111 Lbf)
Prop Diameter	813 mm (32 in)

DOWNLOADS
Tunnel Thrusters H-0800-T

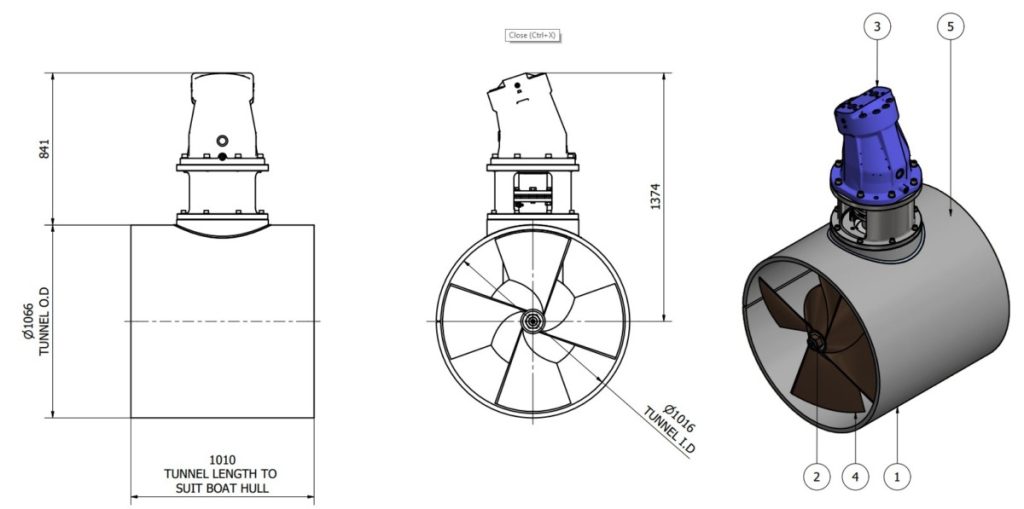

H-1000-T

OMS Tunnel Thruster Hydraulic

T Series tunnel thrusters are compact and easy to fit units that can be supplied complete with steel, aluminium or composite tunnels, pre-drilled ready for installation. The thruster hub units are protected by twin shaft seals on each propeller shaft and a single shaft seal on the vertical input shaft. The tunnel thruster uses high torque spiral bevel gears and twin contra-rotating propellers to develop a high thrust to tunnel diameter ratio. T Series thrusters are supplied complete with a mounting saddle, all gaskets/fasteners and a suitable interface for any hydraulic or electric motor. The motor is driven via a flexible coupling to reduce noise and vibration. OMS is the manufacturer of all OYS Thrusters.

SPECIFICATIONS
Max Power	393 kW (527 Hp)
Thrust	4324 Kgf (9506 Lbf)
Prop Diameter	1016 mm (40 in)

DOWNLOADS
Tunnel Thrusters H-1000-T

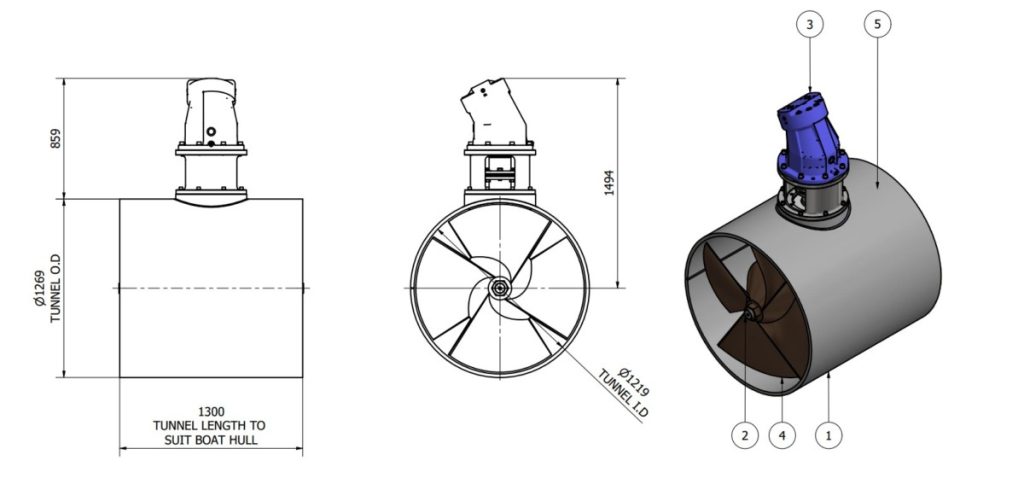

H-1200-T

OMS Tunnel Thruster Hydraulic

T Series tunnel thrusters are compact and easy to fit units that can be supplied complete with steel, aluminium or composite tunnels, pre-drilled ready for installation. The thruster hub units are protected by twin shaft seals on each propeller shaft and a single shaft seal on the vertical input shaft. The tunnel thruster uses high torque spiral bevel gears and twin contra-rotating propellers to develop a high thrust to tunnel diameter ratio. T Series thrusters are supplied complete with a mounting saddle, all gaskets/fasteners and a suitable interface for any hydraulic or electric motor. The motor is driven via a flexible coupling to reduce noise and vibration. OMS is the manufacturer of all OYS Thrusters.

SPECIFICATIONS
Max Power	565 kW (758 Hp)
Thrust	6215 Kgf (13702 Lbf)
Prop Diameter	1219 mm (48 in)

DOWNLOADS
Tunnel Thrusters H-1200-T
